Power Cable Adapter

P/N: CB-20M-24FHP
This cable enables you to use a regular Micro ATX power supply with a 20-pin or 24-pin main power connector on a proprietary HP micro motherboard with a 24-pin mini power socket. 4.125-inch long.

P/N: CB-SA-P68F

Now you can use a SATA 15-pin header to power a graphic card with PCIe 6+2-pin connector.

P/N: CB-SATA-4P8
The cable adapter converts a SATA 15-pin power connector to a molex 4-pin female connector. 8-inch long, and great when you have a extra SATA connector but not enough molex 4-pin female connector.

P/N:CB-8F-68F
This cable plugs into a PCIe 8-pin male port and the other end is a PCIe 6-pin or 8-pin video card female connector. 12" long, black sleeved.

P/N:CB-SATA-SD67
This cable powers slim optical drive from a 12" long molex 4-pin power connector from power supply. The data cable is 24" long.

P/N: CB-SATA1R
This cable adapter converts a molex 4-pin female to a right angle SATA power connector for powering your SATA hard drive. Cable length is 10 inches.

P/N: CB-SATA2R
This cable converts a molex 4-pin female to 2 x SATA power connectors for powering SATA hard drives, first SATA connector at 12 inches, then a further 8 inches to the second SATA connector, overall length 20".

P/N: CB-SATA-4P
This adapter converts a SATA power connector to a female molex 4-pin power connector, simply plug it onto a SATA power connector and you are ready to go.

P/N: CB-P4-P4
This P4 ATX 4-pin extension cable is 12" long so it can extend reach of the P4 ATX connector from your power supply. This extension cable is also black sleeved.

P/N: CB-4MP4-8F
This black-sleeved cable converts a P4 ATX 4-pin female to a 8-pin EPS female connector. Cable length is 6 inches, and it converts your older power supply for use with newer motherboards.

P/N: CB-4M-8F
This 12" long cable converts a molex 4-pin from a regular ATX power supply to either a P4 ATX 4-pin or a EPS 8-pin female by combining the dual P4 ATX 4-pin. This dual use cable adapter is black sleeved.

CB-PCI-X

P/N: CB-PCI-X
This cable adapter converts 2 molex 4-pin male to a PCI-Express 6-pin female power connector for graphic cards. 9-inch long and sleeved.

P/N: CB-6M-6F
This 12-inch long PCI-Express 6-pin extension cable can extend the reach of your PCI-Express 6-pin connector from the power supply. This extension cable is black sleeved and has black connectors as well.

P/N: CB-6M-44F
This Dual-Use cable adapter converts a PCe 6-pin to a EPS 8-pin, or a P4 ATX 4-pin. At 12-inch long and black sleeved, this cable adapter is very functional and looks sleek.

P/N: CB-6M-68F
This 8-inch long, black sleeved cable converts PCI-Express 6-pin female end to a PCI-Express 6+2-pin female connector.

P/N: CB-6M-68F2
This 8-inch long, black sleeved splitter cable splits a PCI-Express 6-pin female connector to two PCI-Express 6+2-pin female connectors.

CB-EPS8-Y

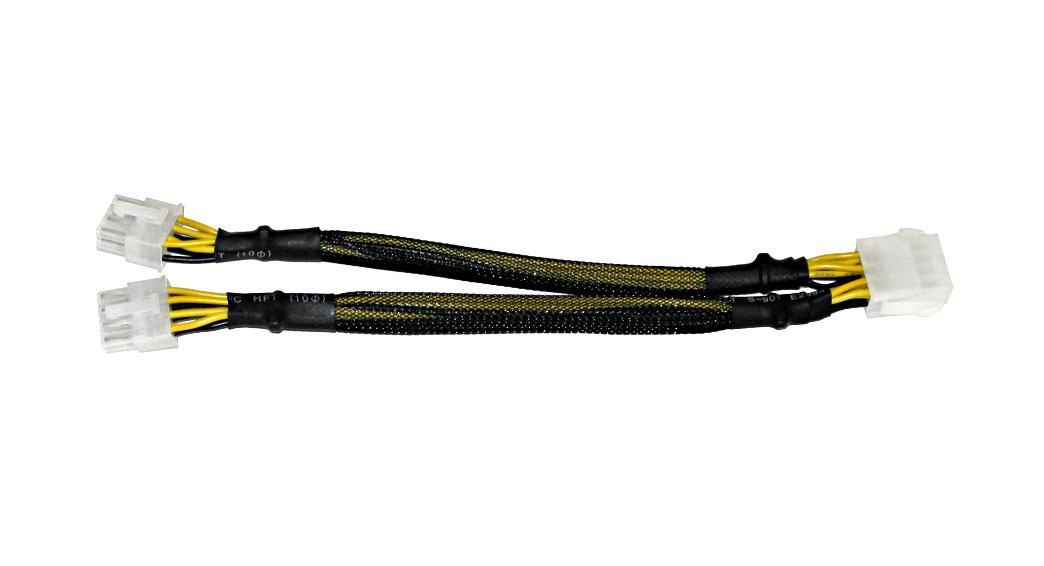

P/N: CB-EPS8-Y
This 8" long, black sleeved cable splits a EPS 8-pin female end to two EPS 8-pin female connectors.

CB-E8-68F

P/N: CB-8M-8F
This black-sleeved power cable adapter can either convert a EPS 8-pin female to two P4 ATX 4-pin female or extends a EPS 8-pin female for longer reach. Cable length is 12".

P/N: CB-E8-P68F
This black-sleeved power cable adapter converts a EPS 8-pin female end to a 6+2-pin PCI-Express female end for the latest PCI-Express graphic cards. Cable length is 8 inches.

CB-PCI-X2

P/N: CB-PCI-X2
The 8" long, black sleeved cable converts two molex 4-pin to a PCI-Express 8-pin female connector for select PCI-Express 2.0 graphic cards that need a direct power source from the power supply.

P/N: CB-PCIE8-EXT
This cables extends the reach of a PCIe 8-pin connector cable for 12 inches in larger computer cases. It is black sleeved as well for better look and better air flow around it.

P/N: CB-8M-68F
This 8-inch long, black sleeved cable converts a PCIe 8-pin female end to a PCIe 6+2-pin female end. This cable can be used for either extension or conversion.

P/N: CB-PCIE8-Y
This 8" long, black sleeved cable splits a PCIe 8-pin female end to 2 x PCIe 6+2-pin female connectors.

P/N: CB-Y8-4
This black sleeved cable splits a molex 4-pin female end to four molex 4-pin female connectors, giving you three additional molex 4-pin female connectors to work with, 8-inch between connectors.

P/N: CB-Y12 (12")
P/N: CB-Y24 (24")

Molex male to 2 x molex female in length of 12" or 24".

P/N: CB-Y12SL (12")
P/N: CB-Y24SL (24")

Molex male to 2 x molex female, black sleeved, in length of 12" or 24"

P/N: CB-24M-24F
This black-sleeved cable either extends a 24-pin connector for longer reach or converts a 24-pin female connector to a 20-pin female connector for motherboard. Cable length is 12".
