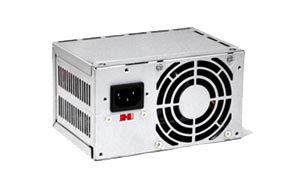

| Item Number |
W25PS3 |
| Rating |
250W |
| Compatibility |
Intel or AMD systems |
| Fan Type |
80mm |
| Thermal Control |
Yes |
| Connectors |
20-pin, P4 ATX, SATA, molex 4-pin, FDD 4-pin |
| Case finish |
galvanized gray |
| I/O Switch |
No |
| 115/230V switch |
Yes |
| Protection |
Over Power, Over Voltage, Short Circuit Protection |
| Dimensions |
6"W x 4"D x 3.5"H |
| MTBF |
>80,000 hours at full load, 110V AC and 25C ambient temperature |
| Package |
bulk pack |
| Box Quantity |
8 to 10 units |
| Box Weight |
24 to 29 lbs |
Compatibility List:
System Upgrade for Hewlett-Packard (HP) model:
HP Pavilion 521n, 522, 522n, 523c, 523n, 524c, 524g, 524w, 525c, 525w, 750, 750N, 751N, 510k4, 6329, 6330, 6331, 6333 Bundle, 6336, 6337, 6340, 6343, 6346, 6350, 6351, 6353, 6355, 6356, 6357, 6360, 6370Z, 6408, 6409, 6460, 6465, 6466, 6467, 6468, 6470Z, 6475Z, 6370Z, 6508, 753n , 7955, 7957, 7965, 7975, 8400CTO, 8500CTO, 8562, 8565C, 8601, 8602, 8603, 8604, 8605, 8606, 8607, 8608, 8609, 8610, 8611, 8612, 8613, 8614, 8615 8616, 8617, 8618, 8619, 8620, 8620SP, 8621, 8622, 8622SP, 8624, 8625, 8625SP, 8626, 8628, 8630, 8630NW, 8630SP, 8630SW, 8630UK, 8631, 8632, 8633, 8634, 8635, 8635UK, 8636, 8637, 8638, 8639, 8640FR, 8640NW, 8640SP, 8640SW, 8642, 8643, 8645, 8645FR, 8646, 8648, 8650, 8650C, 8650FR, 8650NW, 8650SW, 8650UK, 8651C, 8652C, 8655C, 8655FR, 8655NW, 8655SW, 8656C, 8657, 8660C, 8660NW, 8660SP, 8660SW, 8660UK, 8661C, 8662C, 8665C, 8665SP, 8668C, 8670C, 8670FR, 8670NW, 8670SW, 8670UK, 8671C, 8674D, 8674F, 8675FR, 8676C, 8677C, 8679F, 8680FR, 8680NW, 8680SW, 8680UK, 8685FR, 8685UK, 8690FR, 8690UK, 8691c, 8693C, 8694F, 8695UK, 8699F, 8700A CTO, 8700I CTO, 8705, 8705A, 8705I, 8750C, 8754C, 8755C, 8756C, 760C, 8762C, 8765C, 8770C, 8772C, 8785C, 9600 CTO, 9600A CTO, 9600I CTO, 9686C, XL761, XP789, 8533Z, 8543Z, 8550C, 8555C, 8556C, 8560C, 8562, 8565C, 8566C, 8570C, 8575C, 8576C, 8578C, 8580C, 8586C, 8590C, 8595C, 8650C, 8652C, 8655C, 8656C, 8660C, 8662C, 8668C, 8670C, 8676C, 8693C, 8750C, 8754C, 8755C, 8756C, 8760C, 8762C, 8765C, 8766C, 8772C, 8775C, 8776C, 8785C, 8860, 8870, 9680C, 9682C, 9686C, 9688C, 9690C, 9692C, 9694C, 9695C, 9780C, 9790C, XL753, XL754, XL756, XL759, XL761, XL766, XL768, XL773, XL776, XL866 , XT860, XT865, XT878, XT938, XT948, XT958, XT959, XT978, XT983, 6511, 6615, 6532, 6553, 6563Z, 6573Z, 6623, 6633C, 6640C, 6643, 6646C, 6648C, 6653C, 6657, 68XX, 6913, 7842, 7851, 7852, 7857, 7859, 7861, 7862, 7864, 7875, 78XX Shell, 7900 CTO, 7905, 7909, 7910 CTO, 7916, 7920, 7929, 7939, 7940, 7950, 7955, 7965, 7970, 8656C, 8660C, 8662C, 8770C, XT860, XT865, XT878, XT936, 9800 CTO XE730, XE743, XE839
HP Media Center 863n 3n, 883n, m200y CTO, m260n, m270n, m270, m280n, m370n, m376n, m377n, m380n, m380, m385c, m390n, m400y, m476n
HP Media Center 863n 3n, 883n, m200y CTO, m260n, m270n, m270, m280n, m370n, m376n, m377n, m380n, m380, m385c, m390n, m400y, m476n
System Upgrade for Dell systems mode:
Dell Dimension B1000R, B110, 1100, 2200, 2300, 2350, 2400, 2450, 3000, 4100, 4300, 4400, 4500, 4550, 4600, 4700, 8200, 8250, 8300, 8400, 9100
Dell OptiPlex GX60, GX150, 160L, 170L, GX240, GX260, GX270 -- except in Desktops and Small Form Factor Chassis.
Dell PowerEdge 400SC, 600SC
Dell Precision WorkStation 340, 350, 360
System Upgrade for Sony Vaio model:
PCV-C41L PCV-C42L VGC-RB50 VGC-RB54G
Replacement for the following power supplies:
ACBel API-7675, ACBel API-8541
Astec AA20360
Bestec: ATS-100 / ATS-150 / ATX-1953D / ATX-1956D / ATX-1956D B1 / ATX-1956-B1/ ATX 1956-B1 / ATX-1956D B2 /ATX-1956F / ATX-1951D / ATX-250-12Z / ATX-250-12E / ATX-250-12E REV:P7 / ATX-300-12Z / ATX-300-12E / ATX-300-12EB3
Delta DPS-110-1, Delta DPS-145PB-112, Delta DPS-160GB, Delta DPS-200PB-74 B
Dell 2n333 (4G456) K2946 NPS-250KB-B (NPS-250KB) HP-P1457F3 HP-P2507F3B / HP-P2507FWP / HP-P2507F3C / HP-P2507F3CP / HP-P2507F3P / HP-D2537F3R/ F4284 / X2634/ Y2682/ ps-6311-1ds
Hipro HP-P1457F3 HP-146SSA HP-146SSC HP-150CLFA6 HP-A2027F3 HP-A2317F3
HP power supply part # 0950-2700, 0950-2800, 0950-3426, 0950-3623, 0950-3751, 0950-3961, 0950-4097, 0950-4106, 0950-4107, 0950-4270, 5185-2974, and 5187-4874.
IBM 20L2166
In Win IPS-1806CV-60, In Win IW-P180B2-0, In Win IW-P180BX-0, In Win IW-P180BX-1, In Win LPS-1806DV-20
LITEON: PS-5101-2, PS-5101-2B, PS-5151-2, PS-5151-6, PS-6151-6, PS-5151-2H3, PS-6151-6C2, PS-6161-2, PS-6161-2, PS-6161-2H, PS-6161-2H1, PS-6251-01
PC Chips PC100 PS150A
Yokogawa PS036B-0101 Power Supply
|
