NMB-MAT 4710KL-04W-B19
Size: 120x120x25mm
Air Flow: 63.57 CFM
Noise: 27 dBA
Speed: 1600 RPM
Input Voltage: 12VDC
Current: 0.22A
Connector: 3-pin 3-wire |
|
|

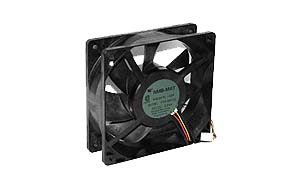

FBA12G12_1BX series 120mm fan |
| Item Number |
FBA12G12 L1BX |
FBA12G12 M1BX |
FBA12G12 H1BX |
FBA12G12 U1BX |
| Make |
Panasonic NBM-MAT |
| Size |
120 x 120 x 38mm |
| Bearing |
Hydro-Wave (HWB)  |
| Voltage |
12V DC |
| Power |
2.4w |
3.38w |
4.44w |
6.12w |
| Air Flow |
68.9 CFM |
86.5 CFM |
103.8 CFM |
114.7 CFM |
| Speed |
1700 RPM (Low speed)
2100 RPM (Medium speed)
2500 RPM (Hi speed)
2705 RPM (Ultra Hi speed) |
| RPM Sensor |
Yes |
| Noise Level |
30 dBA |
35.5 dBA |
41.5 dBA |
45.5 dBA |
| Connector |
Bare wire 12" or with 3/4-pin |
| ROHS |
List |
| MTBF |
30K hours |
| Box Quantity |
40 |
| Box Weight |
30 lbs |
| Retail Package |
available, 3-pin tailed, 4 screws included |
| PDF Link |
Download PDF File |
|
|
| * Actual products may differ from the shown photos on this website.
1st PC Corp may change the specifications and appearances of any products listed on this website without prior notice. |
|
|
|
