92mm DC Cooling Fan

	Delta PFB0912DHE-F00 Size: 92 x 92 x 38mm fan Air Flow: 175.03 CFM Speed: 8000 RPM Noise: 66.5 dBA 3 bare wires Tailed connector upon request

	Delta FFB0912SH-F00 Size: 92 x 92 x 25mm fan Air Flow: 90.02 CFM Speed: 4100 RPM Noise: 50 dBA 3 bare wires Tailed connector upon request

	Delta EFB0912HHE-F00 Size: 92 x 92 x 38mm 2 Ball Bearing Air Flow: 79.81 CFM Speed: 4000 RPM Noise: 46 dBA Voltage: 12V DC Power: 2.4W 3-pin Dell connector Compatible with: DELL P/N 0M104, 6Y249, J0531, Dell Dimension 8400, OptiPlex GX280, PowerEdge 1420SC, 420SC

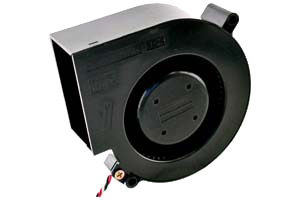

Model Number: BG0903-B047-VTL PIN: T0977
Make: NMB Minebea-Matsushita
Size: 97 x 33 mm
Type: DC 12V System Blower
Bearing: High Speed Double Ball Bearing fan
Screw Mounting Holes: 4.5 +/- 0.5 mm

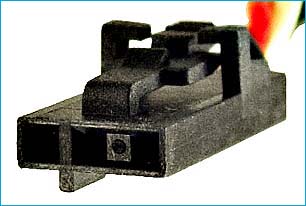

Connector: Dell style 3 pin connector
Wire Length: 8-inch wire
Thermal Control: Thermal Control with Heat Sensor
* Used in certain Dell Dimensions 4600/4600C, Dell Optiplex GX240, GX260, GX270, also replacement for Datech DB9733-12HHBTL-A

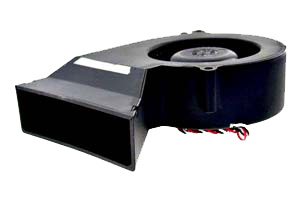

Model Number: DB9733-12HHBTL-A
Size 97 x 33mm
Dell CPU Cooler Part No. P4114 / OP4114
Also replacement for NMB Model BG09038044-VTL
Screw Mounting Holes: 4.5 +/- 0.5 mm
Bearing System: Double Ball Bearing
Rated Voltage: 12V ( 7.00 ~ 13.80 )
Input Current: 2.0A
Connector: 8 inch wires to Dell style 3 pin connector
Compatible Dell P/N: P4114, K4598, P1091, PBT-GF30-FR
Replaces NMB BG0903-B047-VTL,
For Dell OptiPlex, Dimension, and Precision Workstation
Used in Optiplex 260, 270, 280
Thermal Control with Heat Sensor

* Actual products may differ from the shown photos on this website. 1st PC Corp may change the specifications and appearances of any products listed on this website without prior notice.
