120mm 12VDC Cooling Fan |
| |
 |

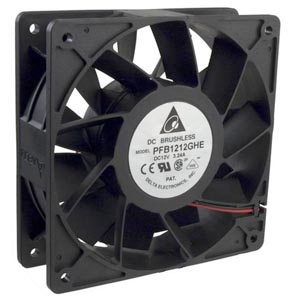

PFB1212GHE-F00
|
| Dimensions: |
120 x 120 x 38mm |
| Air Flow: |
217.80 CFM |
| Air Pressure: |
27.31 mmH2O |
| Fan Speed: |
4800 RPM |
| Noise: |
64 dBA |
| Rated Voltage: |
12VDC |
| Rated Current: |
2.7A |
| Rated Power: |
32.4W |
| Connector: |
3 wires, 3-pin, or 4+3-pin
|
|
 |
AFB1212SHE-CF00
|
| Dimensions: |
120 x 120 x 38mm |
| Air Flow: |
190.48 CFM |
| Air Pressure: |
17.64 mmH2O |
| Fan Speed: |
4100 RPM |
| Noise: |
55.5 dBA |
| Rated Voltage: |
12VDC |
| Rated Current: |
1.25A |
| Rated Power: |
15W |
| Connector: |
3 wires, 3-pin, or 4+3-pin
|
|
 |
FFB1212EHE-F00
|
| Dimensions: |
120 x 120 x 38mm |
| Air Flow: |
190 CFM |
| Air Pressure: |
17.78 mmH2O |
| Fan Speed: |
4000 RPM |
| Noise: |
59 dBA |
| Rated Voltage: |
12VDC |
| Rated Current: |
2A |
| Rated Power: |
24W |
| Connector: |
3 wires, 3-pin, or 4+3-pin |
|
Dell
P/N: D8794
|
AFC1212DE-SP02
(PWM version available)
|
| Dimensions: |
120 x 120 x 38mm |
| Air Flow: |
148.34 CFM maximum |
| Fan Speed: |
3900 RPM |
| Noise: |
51 dBA |
| Rated Voltage: |
12VDC |
| Rated Current: |
1.6A |
| Rated Power: |
19.2W |
| Connector: |
Dell 5-pin 4-wire, or PWM 4-pin connector |
|
 |
AFB1212SHE-F00
Size:
120 x 120 x 38mm
Air Flow: 151.85 CFM
Speed: 3700 RPM
Noise:
53 dBA
12V DC
3 bare wires,
tailed connector upon request
(Limited availability) |
|
 |
TFB1212GHE-F00
Size:
120 x 120 x 38mm
Air Flow: 220 CFM
Speed: 4600 RPM
Noise: 65 dBA
3 bare wire
Tailed connector optional
(Limited availability) |
|
 |
EFB1212SHE-F00
Size:
120 x 120 x 38mm Tri-Blade
Dual Ball Bearing
Air Flow: 141.96 CFM
Speed: 3700 RPM
Noise: 52.5 dBA
3 bare wires
tailed connector upon request
(Limited availability)
|
|
|
| |
|
|
|
