FC6 Fan Controller

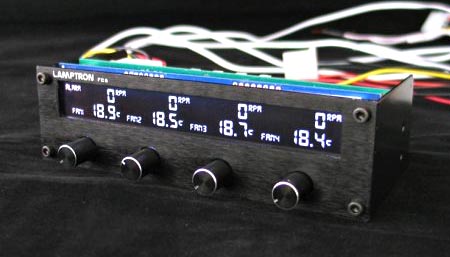

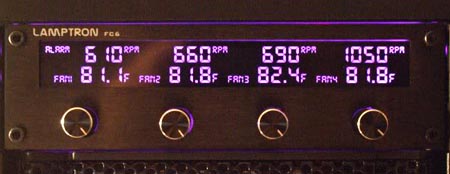

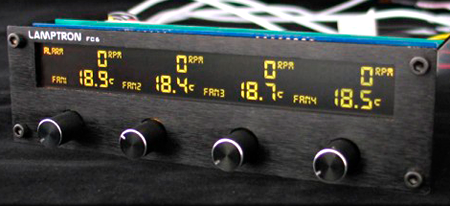

  • LCD display with 7 selectable colors in Blue, Green, Red, Yellow, Cyan, Purple, and White
  • Top line displays cooling fan RPM; Bottom line displays either temperature (Celsius or Fahrenheit), or fan voltage
  • Alarm is triggered when temperature is over 70 degree C, or if the fan fails to work when voltage is over 6.5V
  • Industrial minimalism design with simple operation

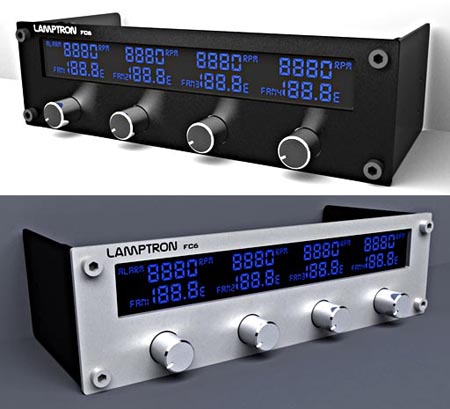

  • Solid Aluminum in black or silver front bezel finish
  • Up to 20W for each of the 4 channels

Part Number: FC-FC6-BK for Black version
Part Number: FC-FC6-SL for Silver version

Dimensions Overall: 148.5 x 42.5 x 63mm (5.25" Drive Bay)
Power Input: +12VDC (via standard 4-pin Molex)
Power Output: Up to 20W per channel x 4 channels
Control Range: 0 - 12VDC

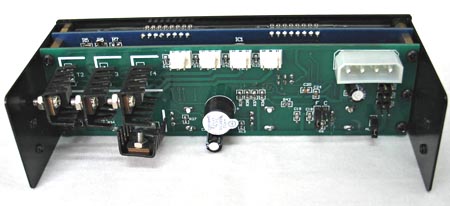

Fan Header: Molex standard 3-pin x 4
Front Panel Color: Black

Download FC6 User Guide 1, User Guide 2

Purchase this product at these fine retailers:
