FC5 V3 Fan Controller

FC5 V3 features:

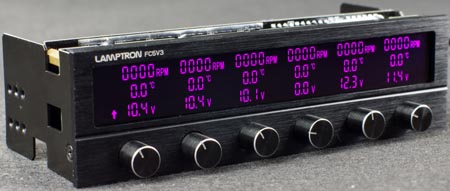

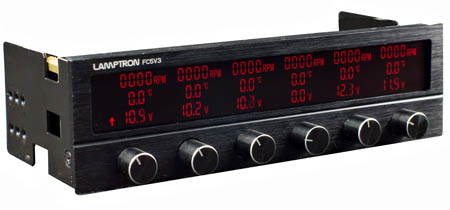

The FC5 V3 is a real step forward in the evolution of fan controllers. It is bound to become the new standard in this domain. With up to 30W for each of its 6 channels you can hook up some powerful fans for your system. The newly improved and wider LCD display displays RPM, temperature and voltage, and has 16 different colors to choose from for illumination. The FC5 V3 integrates all the commands directly on the front of the fan controller for quicker access to all functions. The smart Start Boost provides an initial 12V power for all the channels in order to power up all fans properly even if the fans are set at a minimum working voltage.

Part Number: FC-FC5V3-BK

Dimensions Overall: 148.5 x 42.5 x 63mm (5.25" Drive Bay)
Power Input: +12VDC (via standard 4-pin Molex)
Power Output: Up to 30W per channel x 6 channels
Control Range: 0 - 12VDC

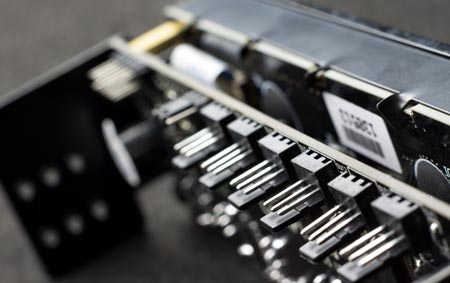

Fan Header: Molex standard 3-pin x 6
Front Panel Color: Black

Download User Guide 1, User Guide 2
