FC Touch Fan Controller

FC Touch

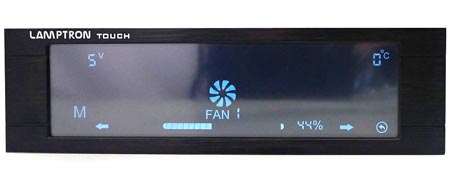

FC Touch brings touch screen functionality to your fingertips for controlling up to 6 cooling fans in either manual or auto mode of your choice. Each channel can have its own independent automatic parameter in which you can adjust to your own specific needs, and each channel is rated up to 30W of power.

Set your read-outs in choices of RPM or voltage for one side, and Celsius or Fahrenheit for the other. Fits into a single 5.25" drive bay, and all presented in a CNC milled faceplate.

Part Number: FC-FCT-BK

Dimensions Overall: 148.5 x 42.5 x 63mm (5.25" Drive Bay)
Dimensions LCD: 118 x 31.5mm (4.64 x 1.24-inch)
Power Input: +12VDC (via standard 4-pin Molex)
Power Output: Up to 30W per channel x 6 channels
Fan Header: Molex standard 3-pin x 6
Front Panel Color: Black Anodized Aluminium

Download User Guide 1, User Guide 2

Purchase this product at these fine retailers:
