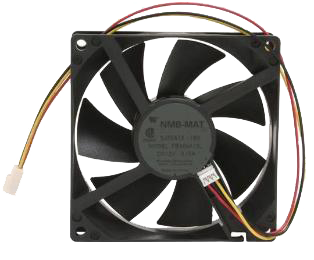

FBA09A12L_BX series 92mm fan
|
|
|
| Item Number |
FBA09A12 L1BX |
FBA09A12 M1BX |
FBA09A12 H1BX |
FBA09A12 U1BX |
| Make |
Panasonic NBM-MAT |
| Size |
92 x 92 x 25 mm |
| Bearing |
Hydro-Wave (HWB)  |
| Voltage |
12V DC rated (operating 7 - 13.8V DC) |
| Power |
1.32w |
1.80w |
2.70w |
5.16w |
| Air Flow |
42.7 CFM |
48 CFM |
56.8 CFM |
68.8 CFM |
| Speed |
2200 RPM (Low speed) / 2450 RPM (Medium speed) / 2950 RPM (Hi speed) / 3450 RPM (Ultra Hi speed) |
| RPM Sensor |
Yes |
| Noise Level |
27 dBA |
30 dBA |
35 dBA |
43 dBA |
| Connector |
Bare wire 12" or with 3/4-pin |
| ROHS |
List |
| MTBF |
50K hours |
| Box Quantity |
100 |
| Box Weight |
31 lbs |
| Retail Package |
available, 3-pin tailed, 4 screws included |
| PDF Link |
Download PDF File |
|
* Actual products may differ from the shown photos on this website.
1st PC Corp may change the specifications and appearances of any products listed on this website without prior notice. |
|
|
|
